Discontinued – Suggested Replacement: S49396
S9396 100W/LED/HID/5000K/100-277V EX

S9396

100W/LED/HID/5000K/100-277V EX

100 Watt - LED HID Replacement (up to 400 Watt); 5000K; Mogul extended base; 100-277 Volt


Lights

S9396

100W/LED/HID/5000K/100-277V EX

100 Watt - LED HID Replacement (up to 400 Watt); 5000K; Mogul extended base; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS49396
Watts100W
Incandescent Equivalent500W
Fluorescent Equivalent150W
HID Equivalent400W
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+

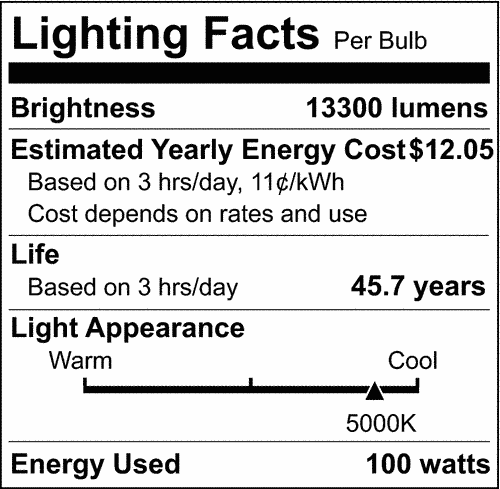

Lumens13300L
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Electrical
Watts100W
Incandescent Equivalent500W
Fluorescent Equivalent150W
HID Equivalent400W
Volts100V-277V
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Working VoltageAC 90-305V
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens13300L
Beam Spread300
DimmableNon-Dimmable
Power Factor0.95
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection
Operating Temperature-20C (-4F) to +65C (+149F)
Physical
MOL9.63
MOD5.88
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite
Additional Information
IncludesSafety chain
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
DLC ApprovedNo
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923093968
Each Quantity1
Each Length (in.)7.40
Each Width (in.)7.40
Each Height (in.)11.10
Each Weight (lb.)4.66
Each Cube (CuFt.)0.3518
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923093965
Case Quantity4
Case Length (in.)15.40
Case Width (in.)15.40
Case Height (in.)12.20
Case Weight (lb.)20.06
Case Cube (CuFt.)1.6744
