Discontinued – Suggested Replacement: S49397

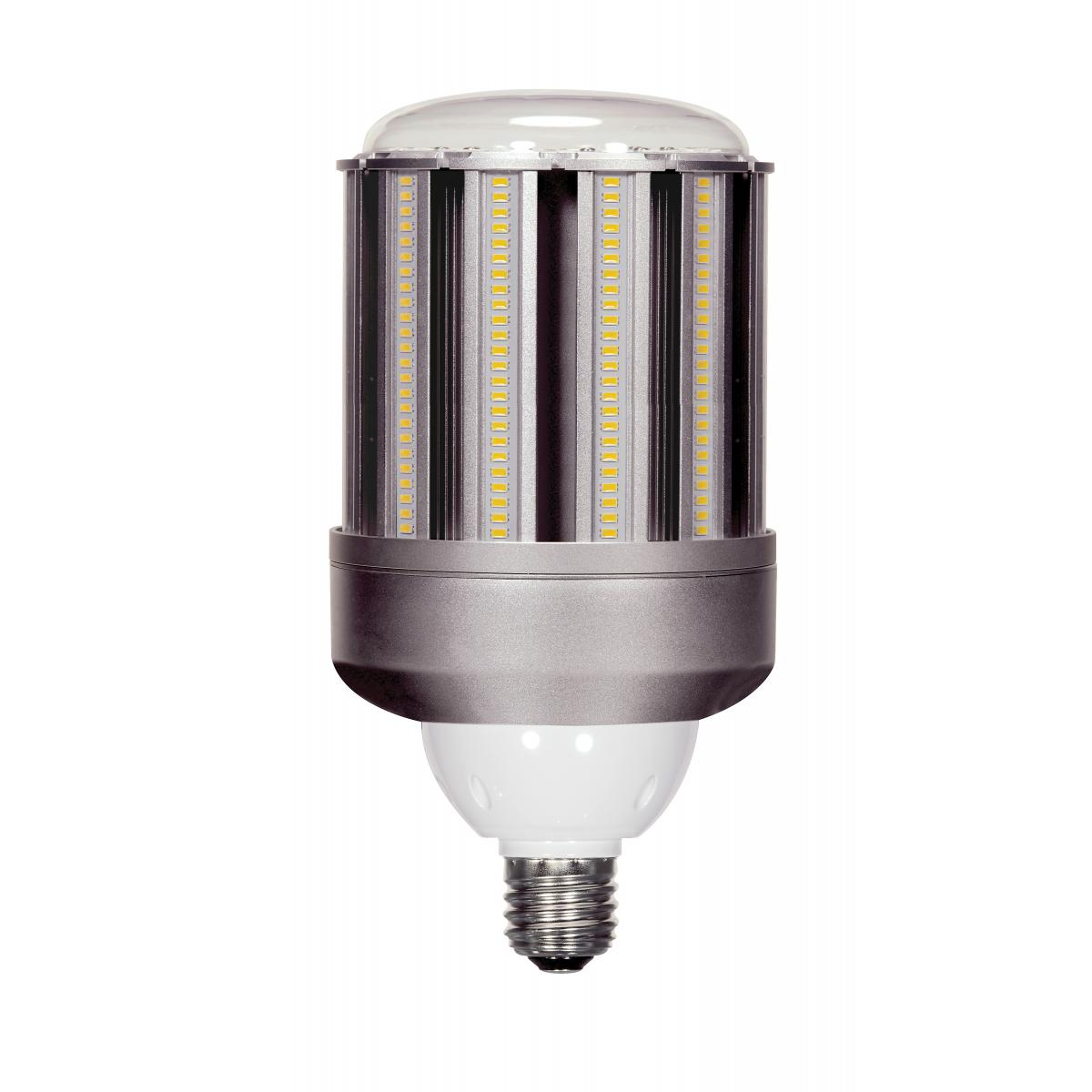

S9356 120W/LED/HID/5000K/100-277VE39

S9356

120W/LED/HID/5000K/100-277VE39

Discontinued - 120 Watt - HID Replacement; 5000K; Mogul base; 100-277 Volt


Lights

S9356

120W/LED/HID/5000K/100-277VE39

Discontinued - 120 Watt - HID Replacement; 5000K; Mogul base; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS49397
Watts120W
Incandescent Equivalent750W
Fluorescent Equivalent200W
HID Equivalent600W
Volts100V-277V
ShapeCorncob
BaseMogul
ANSI BaseE39
FinishClear
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens14400L
Beam Spread300
DimmableNon-Dimmable
Hours Rated40000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Electrical
Watts120W
Incandescent Equivalent750W
Fluorescent Equivalent200W
HID Equivalent600W
Volts100V-277V
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Working VoltageAC 90-305V
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens14400L
Beam Spread300
DimmableNon-Dimmable
Power Factor>.9
Hours Rated40000
Operating PositionUniversal
Operating Temperature-20C (-4F) to +65C (+149F)
Physical
MOL12
MOD5.75
ShapeCorncob
BaseMogul
ANSI BaseE39
FinishClear
Lens FinishClear
Housing ColorWhite
Additional Information
Additional InfoHigh Lumen Omni-directional LED for Industrial/Commercial applications; Replaces HID, CFL, and Incandescent
Rated For Enclosed FixtureYes
IP RatingIP64
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Listed
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923093562
Each Quantity1
Each Length (in.)5.75
Each Width (in.)5.75
Each Height (in.)12.01
Each Weight (lb.)4.80
Each Cube (CuFt.)0.2298
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923093569
Case Quantity4
Case Length (in.)15.75
Case Width (in.)15.75
Case Height (in.)13.98
Case Weight (lb.)22.93
Case Cube (CuFt.)2.0069
