65-577

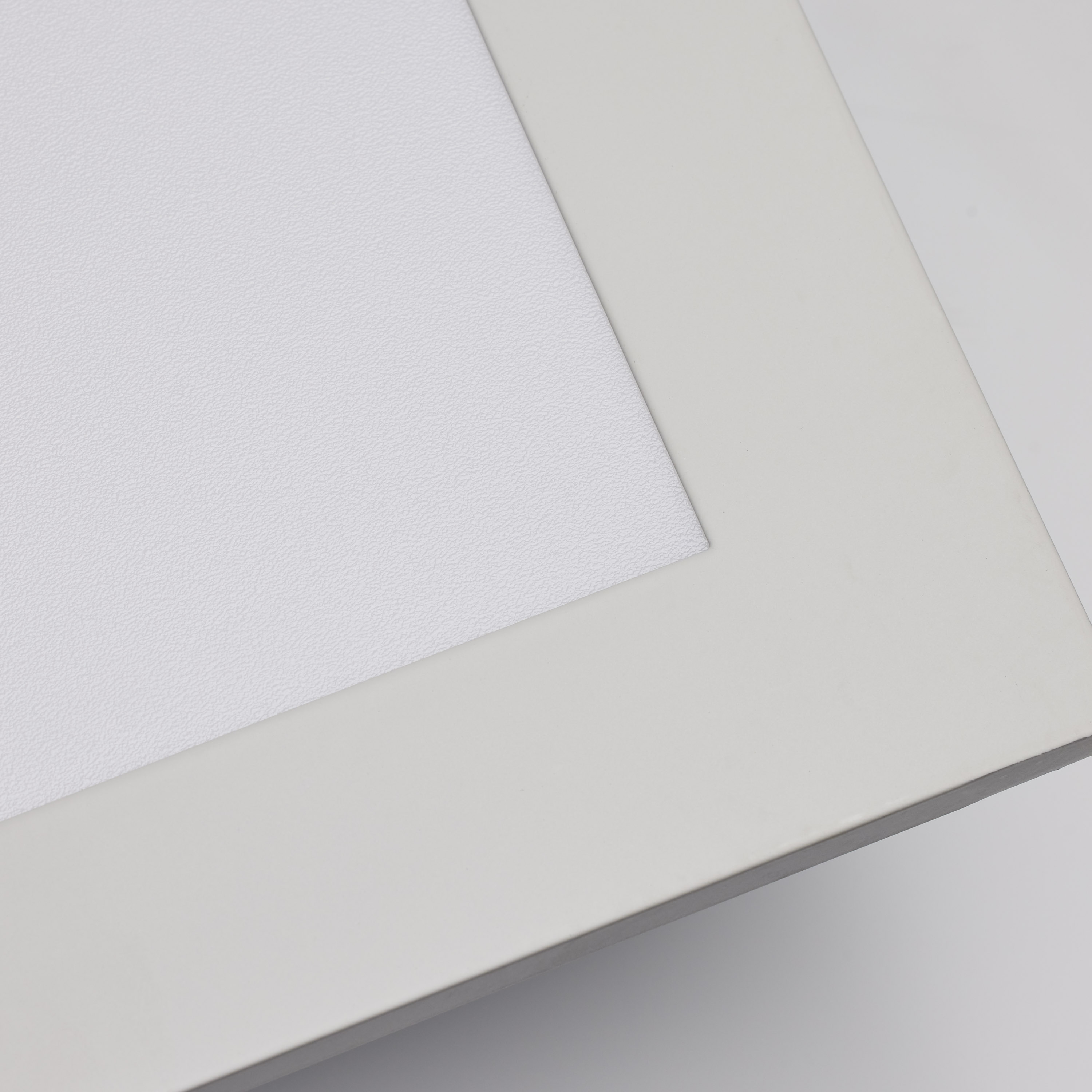

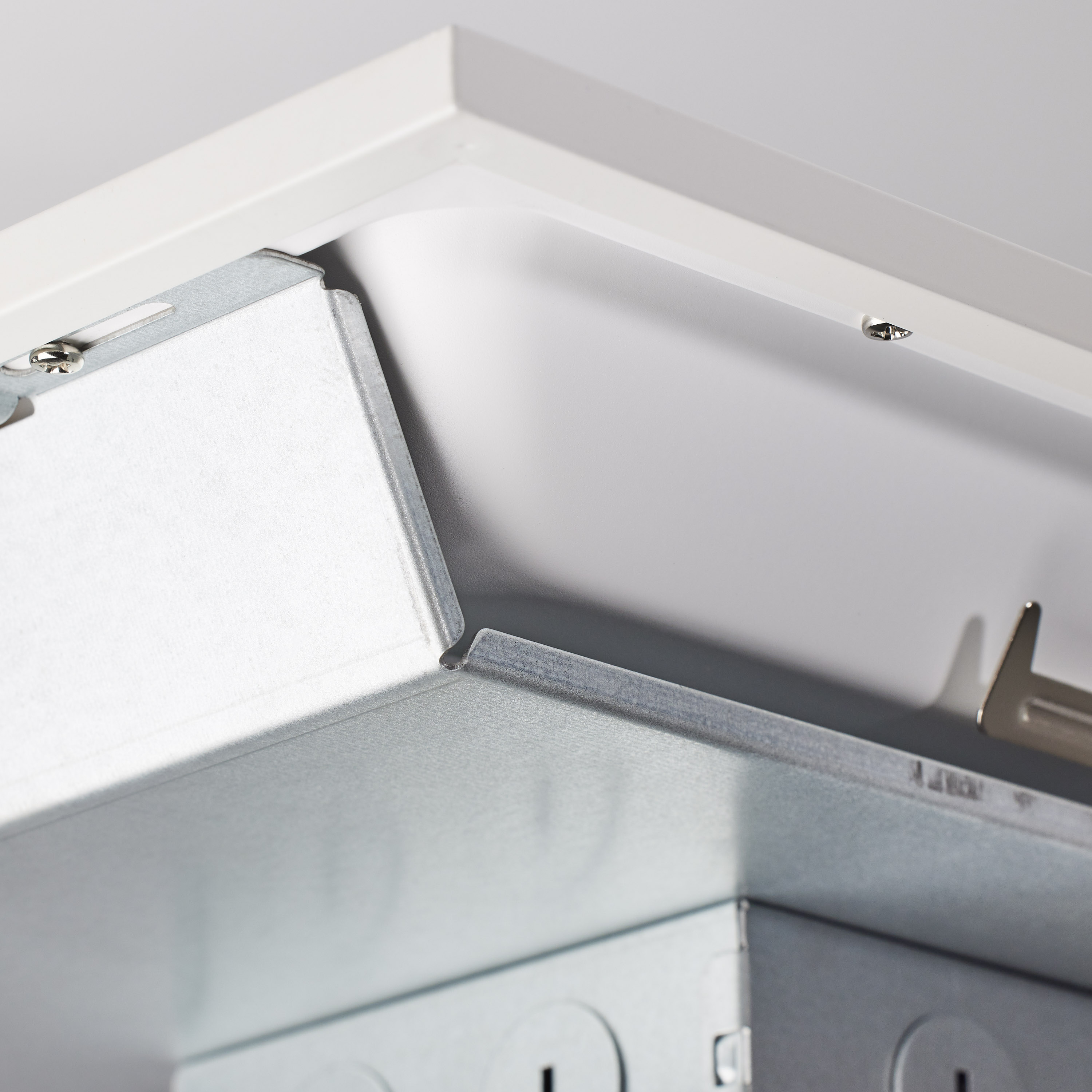

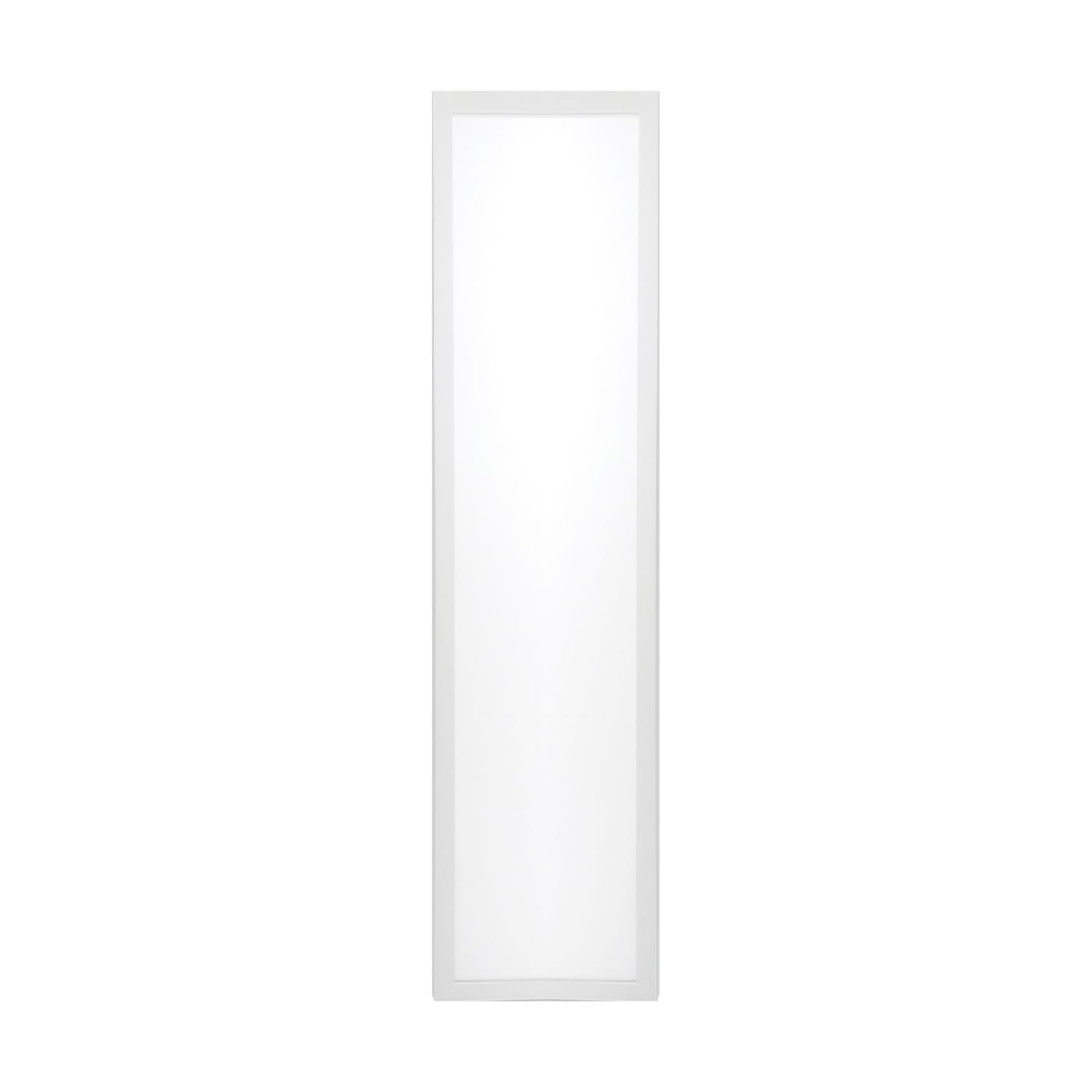

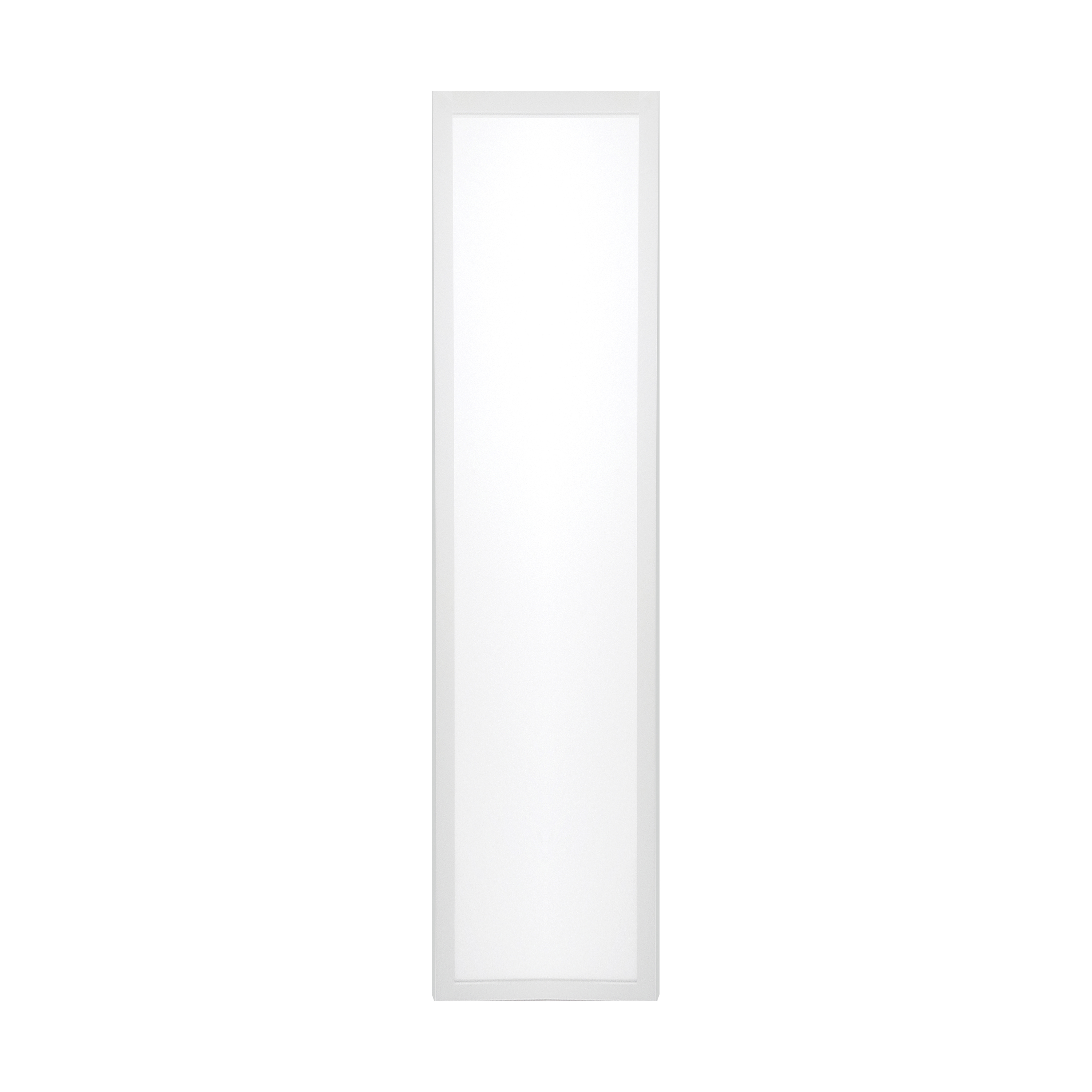

1X4 LED EM BACKLIT FLAT PANEL

Discontinued - Suggested Replacement: 65-577R1
  • LED Emergency Backlit Flat Panel
  • 40 Watt
  • 1 ft. x 4 ft.
  • Selectable CCT
  • 100-277 Volt
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-577 Specifications65-577 InstructionsNU1350-5 LO RES LED Fixt Guide 10 20
Description
Description
LED Emergency Backlit Flat Panel; 40 Watt; 1 ft. x 4 ft.; Selectable CCT; 100-277 Volt
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only
MaterialAluminum / Steel
Fixture TypeBacklit Flat Panel
StatusDiscontinued
StyleUtility
Most Current Generation65-577R1
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion14%
Wire ColorWhite / Black / Green
Wire Length3.54
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.400-0.144A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Photo CellNo Photocell
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)

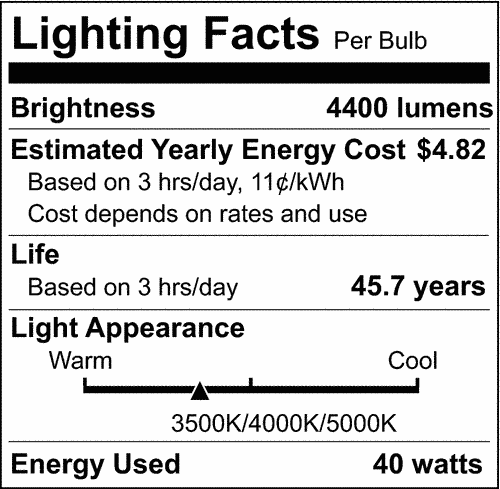

Lumens4400L-4600L
Volts120V-277V
Watts40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
Air TightFalse
CA RegulationsT20 Non-Compliant - Never Tested
CA Prop 65Lead
CA StatusNon-Compliant
DLC IDPLH2XQKAH9ZC
FCC CompliantTrue
IC RatedTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextNon-Compliant
UL ApplicationLED Panel Luminaire
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923655616
Case Cube0.9724
Case Height13.39
Case Length49.02
Case Quantity1
Case UPC10045923655613
Case Weight6.7
Case Width2.56
EA Cube0.9724
EA Height13.39
EA Length49.02
EA Quantity1
EA Weight6.7
EA Width2.56
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

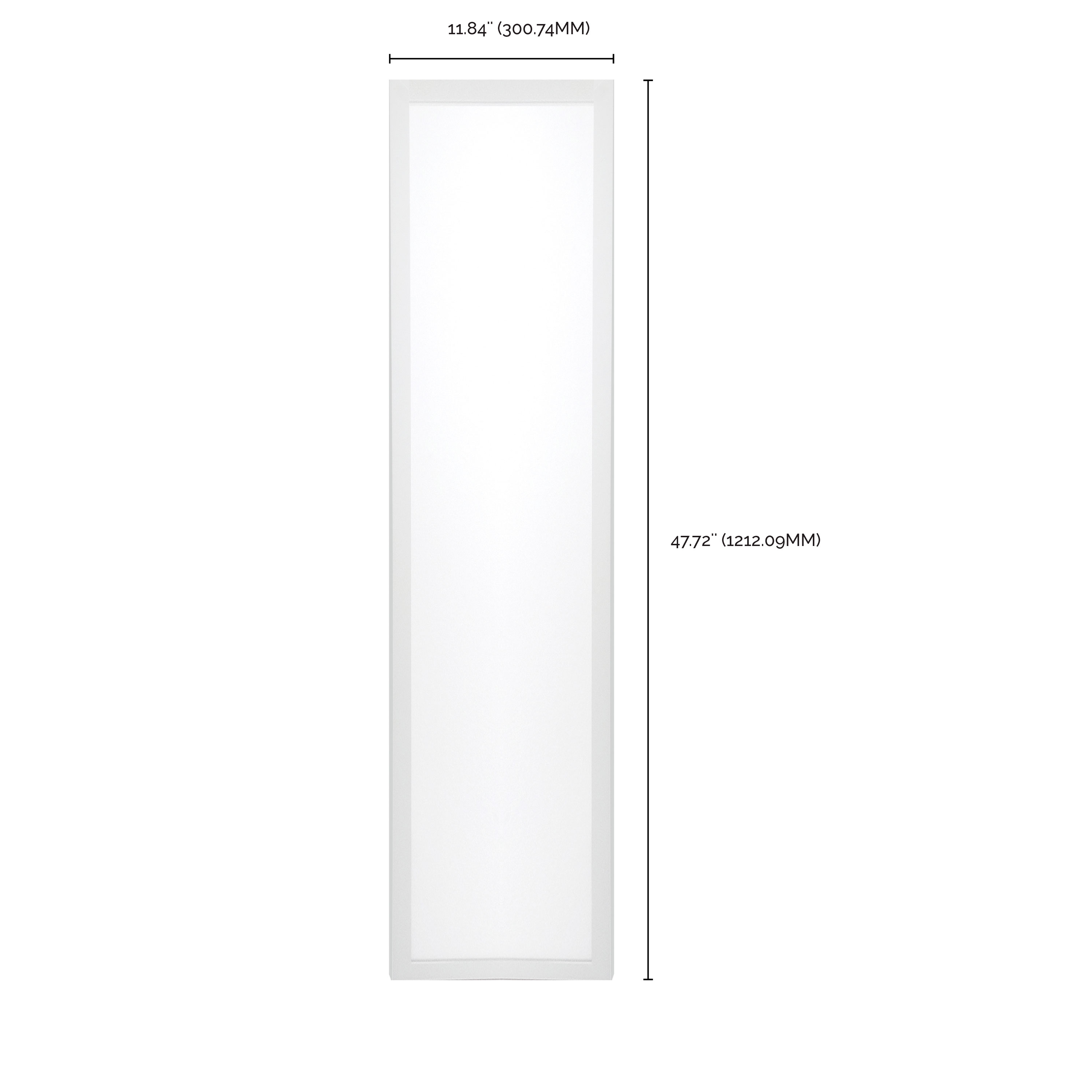

Web Height1.5
Web Length47.72
Web Width11.84
