65-586

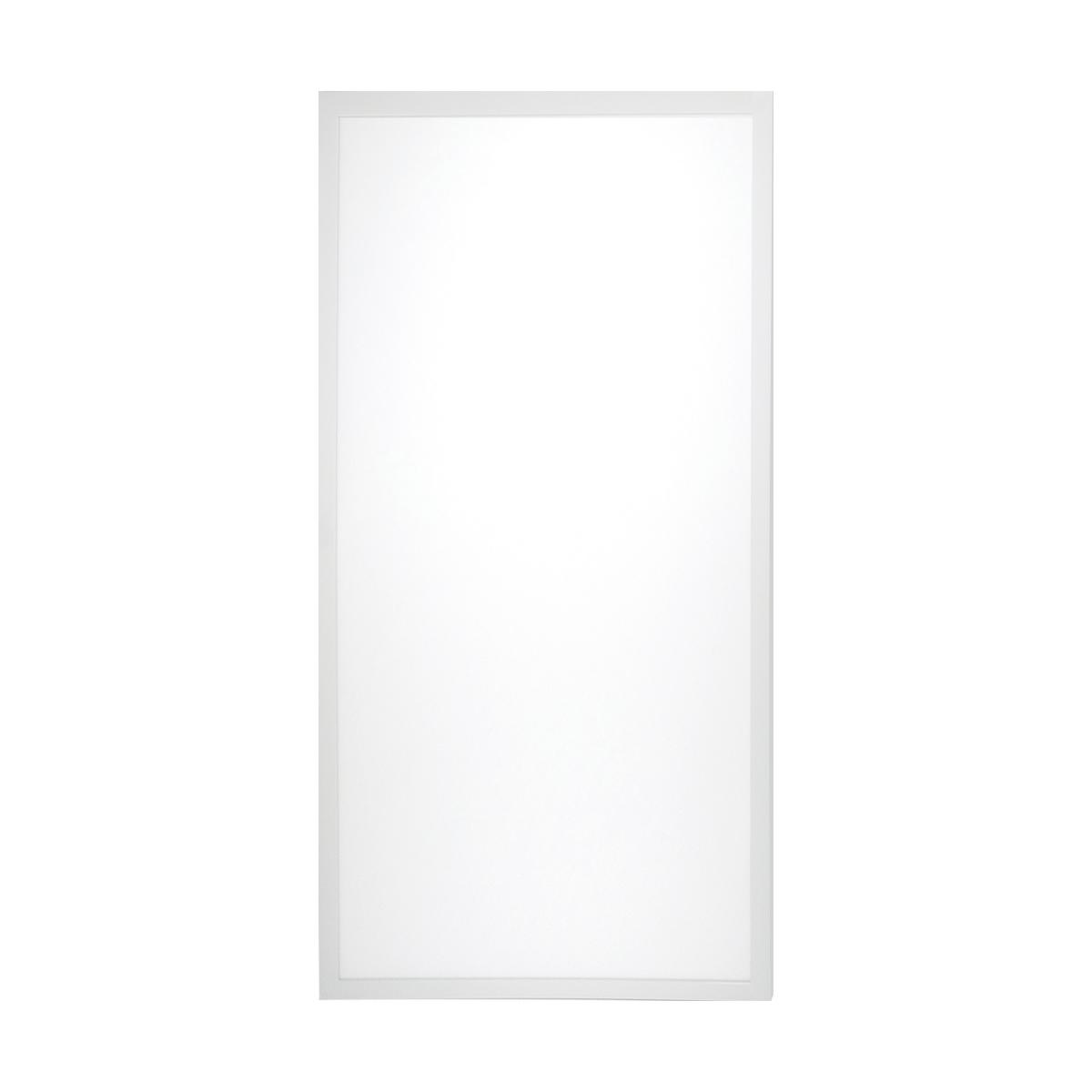

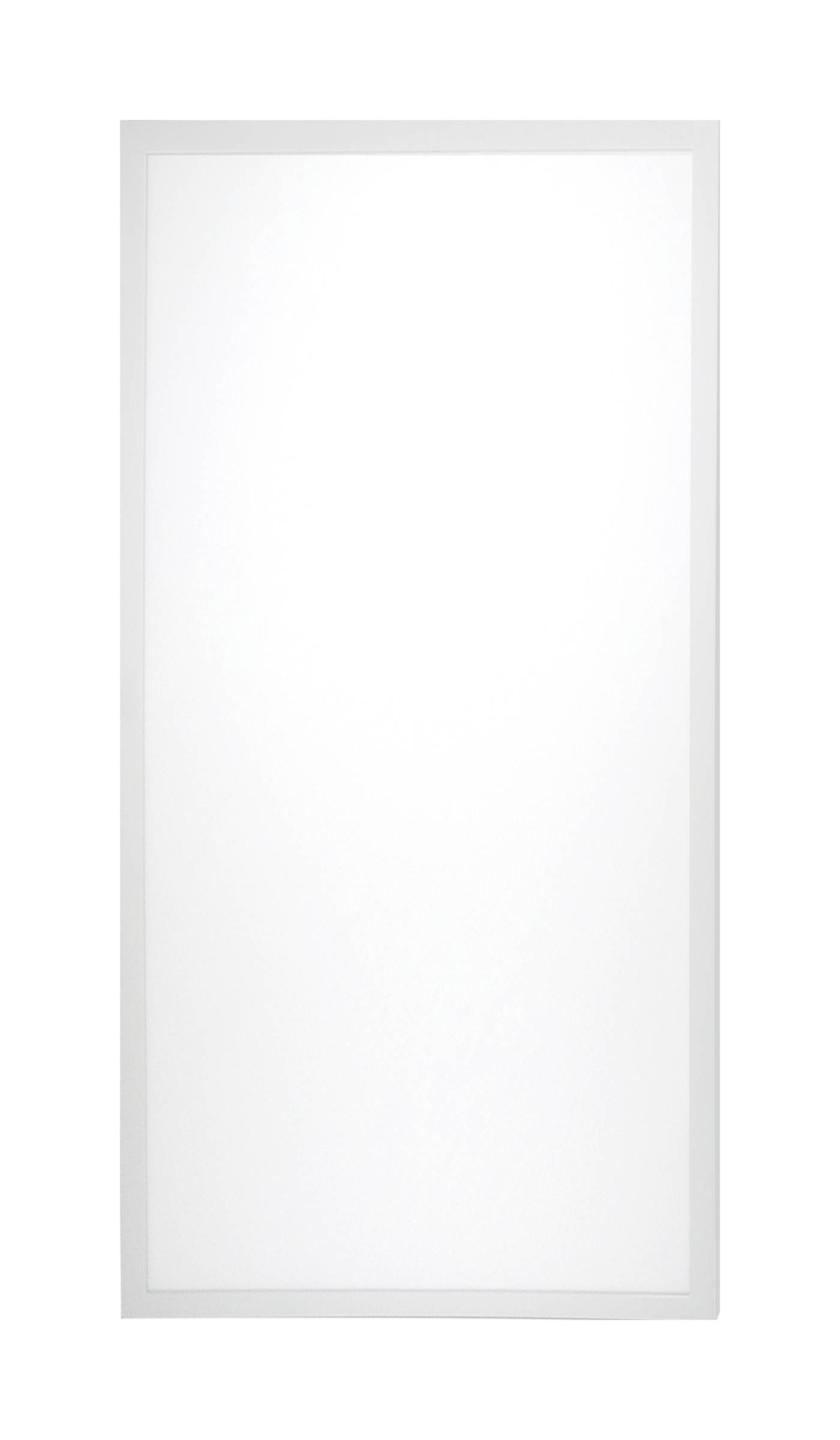

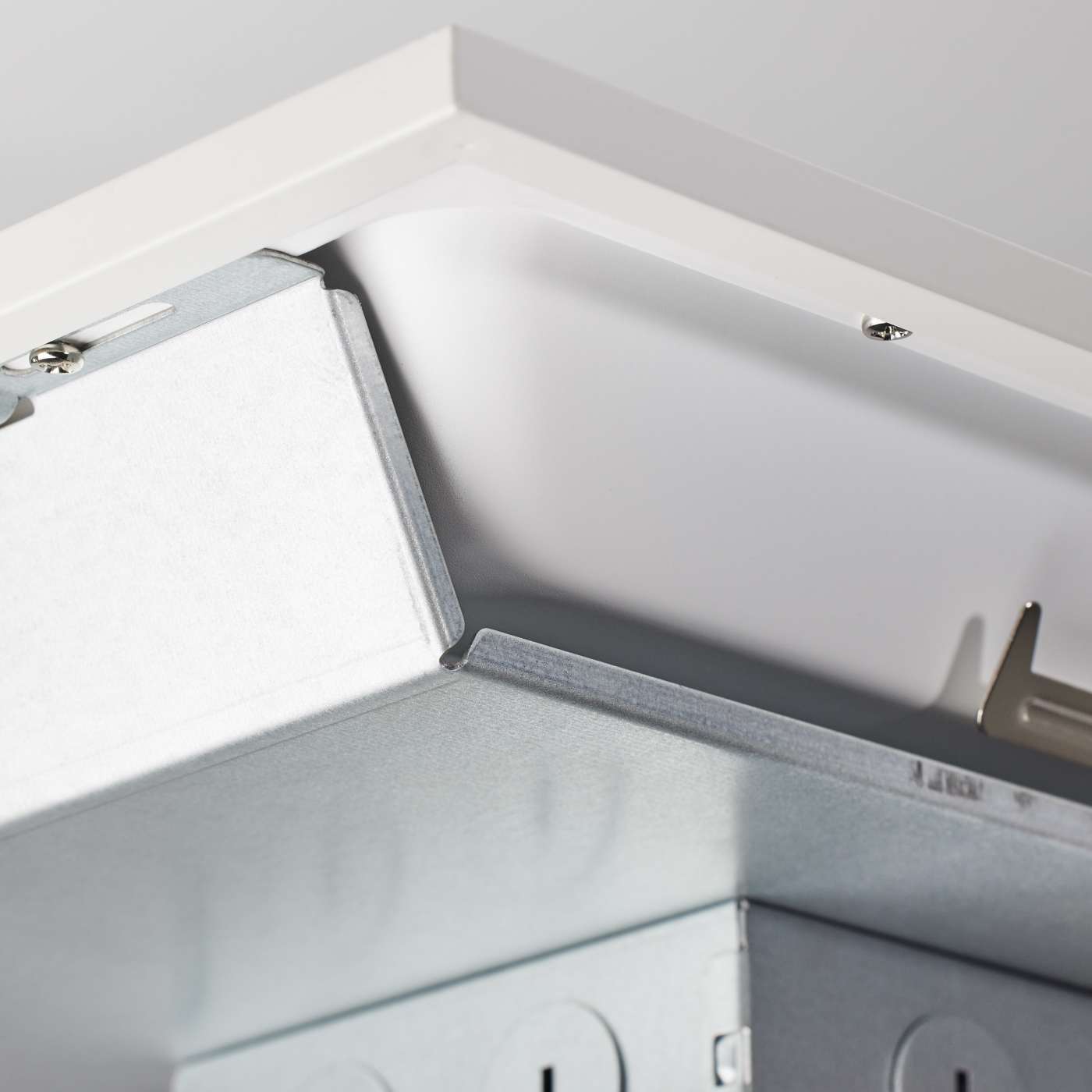

2X4 LED EM BACKLIT FLAT PANEL

  • LED Emergency Backlit Flat Panel
  • 50 Watt
  • 2 ft. x 4 ft.
  • Selectable CCT
  • 100-347 Volt
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-586 Specifications65-586 Instructions65-586 Wiring Diagram
Tools
Lighting Layout Analysis For 65-586
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Emergency Backlit Flat Panel; 50 Watt; 2 ft. x 4 ft.; Selectable CCT; 100-347 Volt
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Non-Compliant - Never Tested
Dimmable Text0-10V Dimming Only
MaterialAluminum / Steel
Fixture TypeBacklit Flat Panel
StatusDiscontinued
StyleUtility
Most Current Generation65-586R1
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion20%
Wire ColorWhite / Black / Green
Wire Length3.54
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.500-0.144A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Photo CellNo Photocell
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent250W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)
Lumens5500L-5750L
Volts120V-347V
Watts50W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
Air TightFalse
CA Prop 65Lead
CA StatusNon-Compliant
DLC IDPL986P3MZCPN
FCC CompliantTrue
IC RatedTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextNon-Compliant
UL ApplicationLED Panel Luminaire
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923659577
Case Cube3.0954
Case Height25.2
Case Length49.02
Case Quantity1
Case UPC10045923659574
Case Weight15.33
Case Width4.33
EA Cube3.0954
EA Height25.2
EA Length49.02
EA Quantity1
EA Weight15.33
EA Width4.33
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height2.88
Web Length47.72
Web Width23.75
