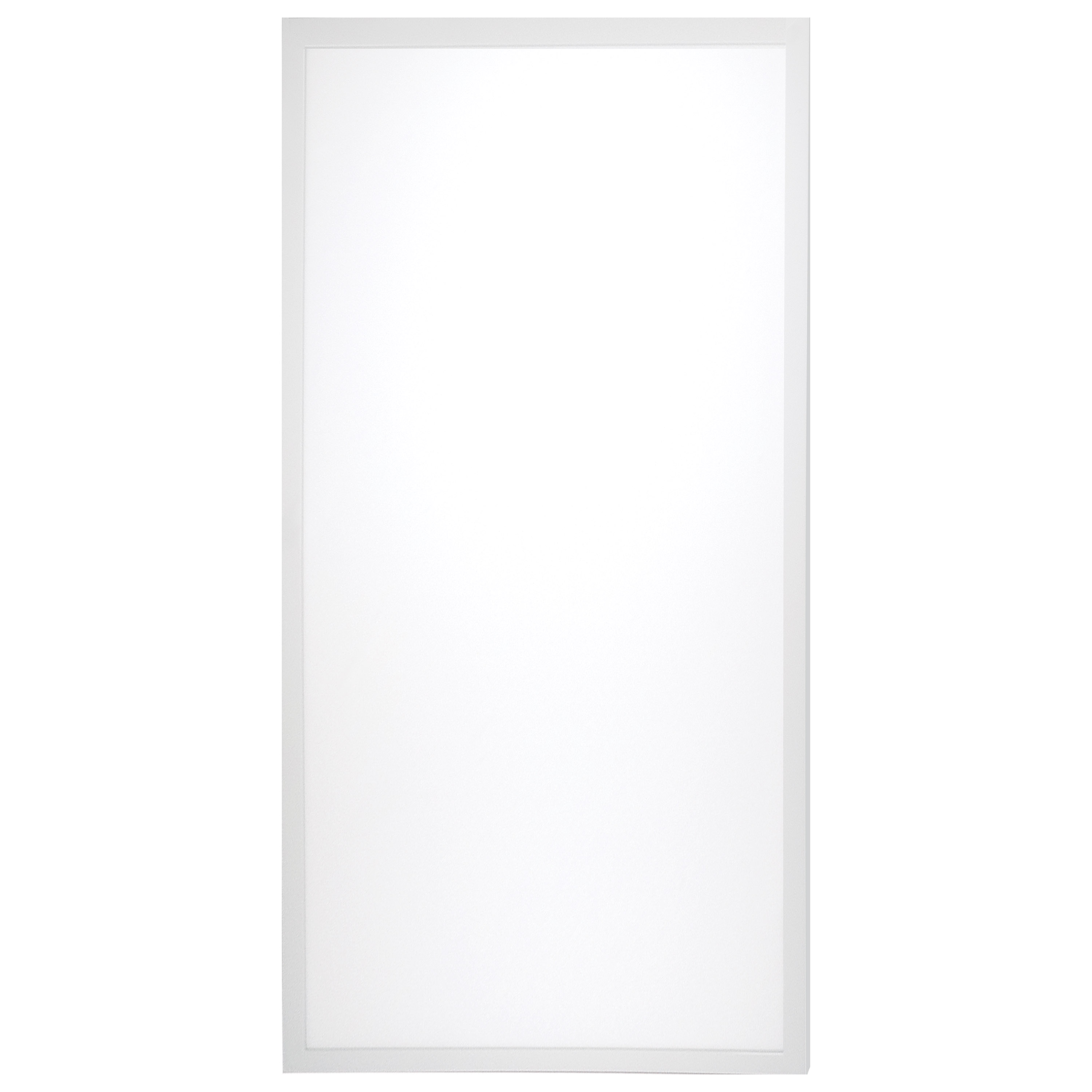

65-586R1 2X4 LED EM BACKLIT FLAT PANEL

65-586R1

2X4 LED EM BACKLIT FLAT PANEL

LED Emergency Backlit Flat Panel; 2 ft. x 4 ft.; Wattage and CCT Selectable; 100-347 Volt; ColorQuick Technology; PowerQuick Technology


The SATCO|NUVO LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making these fixtures extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Our integrated emergency battery backup models, with a 90-minute run time, will make you feel safe and sound just when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.
  • 3500K/4000K/5000K CCT Selectable
  • 30W/40W/50W Wattage Selectable
  • Integrated emergency battery backup with 90-minute run time
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed
  • Title 20 Complaint
  • Higher 120-347 Voltage Range
Lights

65-586R1

2X4 LED EM BACKLIT FLAT PANEL

LED Emergency Backlit Flat Panel; 2 ft. x 4 ft.; Wattage and CCT Selectable; 100-347 Volt; ColorQuick Technology; PowerQuick Technology

The SATCO|NUVO LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making these fixtures extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Our integrated emergency battery backup models, with a 90-minute run time, will make you feel safe and sound just when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.
  • 3500K/4000K/5000K CCT Selectable
  • 30W/40W/50W Wattage Selectable
  • Integrated emergency battery backup with 90-minute run time
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed
  • Title 20 Complaint
  • Higher 120-347 Voltage Range
LED Backlit Flat Panels

Specifications

Minimize
General
StatusActive
Fixture TypeBacklit Flat Panel
FinishWhite
Wattage30W/40W/50W
Lumen Output3300L-5750L
CCT (Kelvin)3500K/4000K/5000K
IP RatingIP20
Indoor or Outdoor FixtureIndoor
Smart Product Info
IOT EnabledNo
Specifications
TechnologyLED
Wattage30W/40W/50W
Lumen Output3300L-5750L
CCT (Kelvin)3500K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80+
Voltage100V-347V
Beam Angle120
Rated Hours50000
Operating Temperature-17C (+1.4F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Photocell or SensorNo Photocell
Lens MaterialPoly methyl methacrylate (PMMA)
Surge ProtectionBuilt-in surge protection - 2KV
Weight (lb.)11.46
IP RatingIP20
MaterialAluminum / Steel

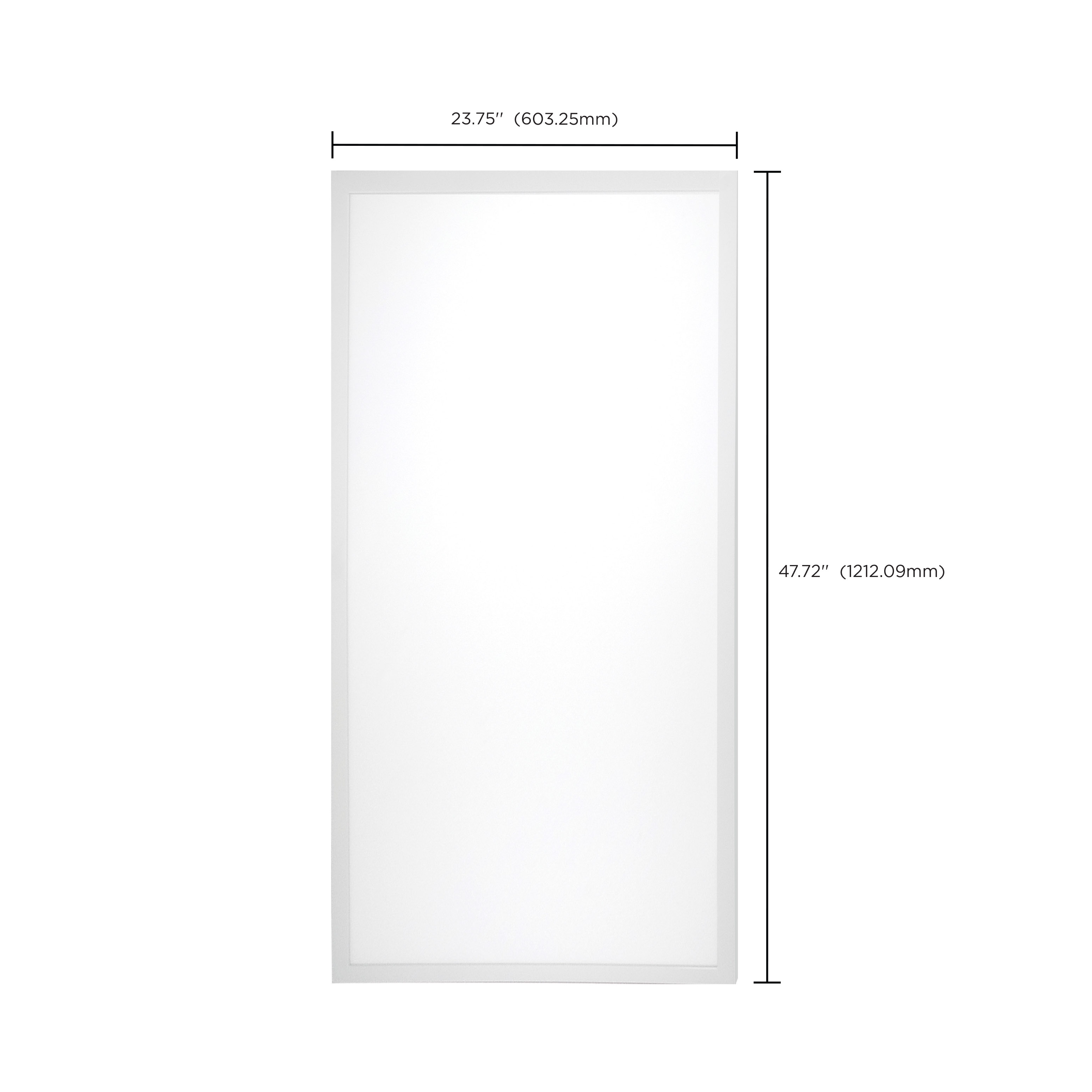

Dimensions
Height (in.)2.88
Width (in.)23.75
Length (in.)47.72
Compliance
Safety ListingcETLus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-AM02LE
NSF ApprovedYes
Air Tight RatedNo
IC RatedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
California Prop 65
Lead
RoHS CompliantYes
FCC CompliantYes
Flicker FreeYes
SDS SheetLED Fixture
Additional Information
Additional InformationDriver Specs - VDC38-48V; 630/810/1030mA
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923657245
Each Quantity1
Each Length (in.)49.02
Each Width (in.)4.33
Each Height (in.)25.20
Each Weight (lb.)15.33
Each Cube (CuFt.)3.0954
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923657242
Case Quantity1
Case Length (in.)49.02
Case Width (in.)4.33
Case Height (in.)25.20
Case Weight (lb.)15.33
Case Cube (CuFt.)3.0954

Documents

Size

99K

65-586R1 Spec Sheet

Type: PDF

Size

1.1M

65-586R1 Lighting Facts Label

Type: PNG

Size

1913KB

65-586R1 Instructions

Type: PDF

Documents

65-586R1 Spec Sheet

Type: PDF

Size: 41K

65-586R1 Lighting Facts Label

Type: PNG

Size: 1.1MB

65-586R1 Instructions

Type: PDF

Size: 25K
