» S21405

Discontinued – Suggested Replacement: S21412

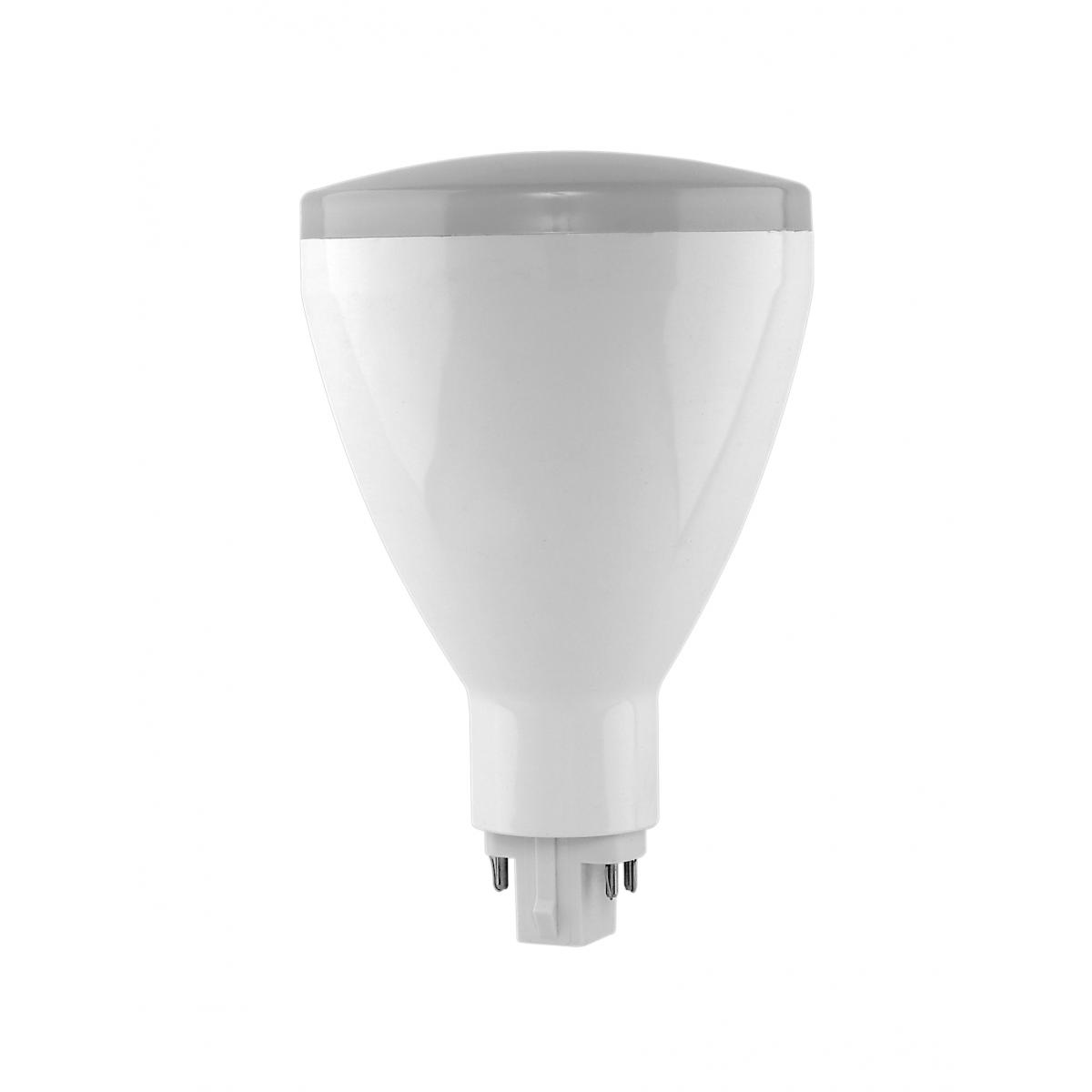

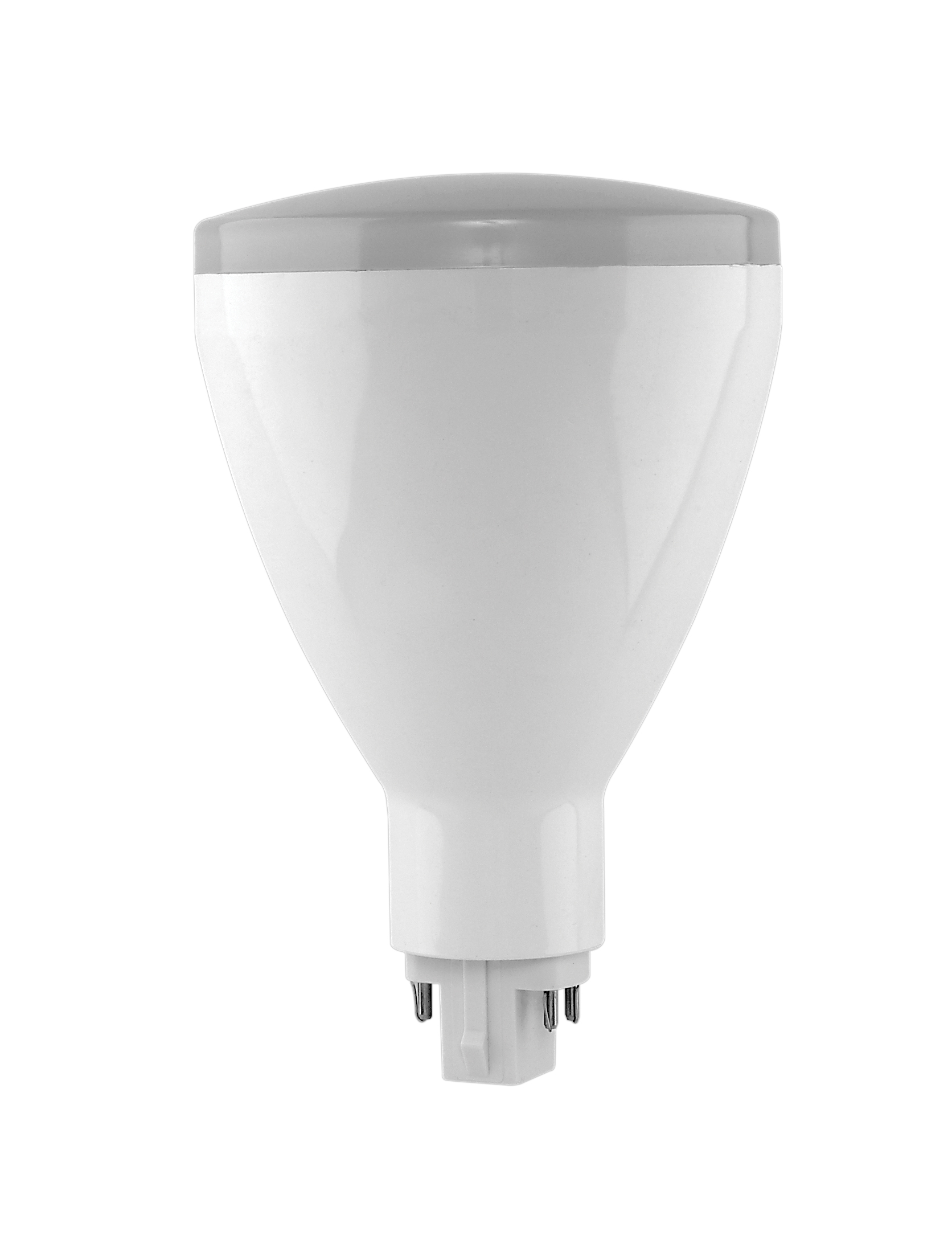

S21405 PLT/16W/V/LED/835/4P/DR

S21405

PLT/16W/V/LED/835/4P/DR

16 Watt LED PL 4-Pin; 3500K; 1750 Lumens; G24q base; 50000 Average rated hours; Vertical; Type A; Ballast dependent


Lights

S21405

PLT/16W/V/LED/835/4P/DR

16 Watt LED PL 4-Pin; 3500K; 1750 Lumens; G24q base; 50000 Average rated hours; Vertical; Type A; Ballast dependent

Specifications

General
StatusDiscontinued
SubstituteS21412
Watts16W
Fluorescent Equivalent42W
VoltsBallast Dependent
Ballast TypeType A
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1750L
Beam Spread110
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionBase Up or Down
TechnologyLED
Electrical
Watts16W
Fluorescent Equivalent42W
VoltsBallast Dependent
Ballasting RequirementsBallast required
Ballast TypeType A
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1750L
Beam Spread110
Power Factor0.9
Hours Rated50000
THD20%
Operating PositionBase Up or Down
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL5.19
MOD3.75
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
Weight (lb.)0.33
Additional Information
Rated For Enclosed FixtureYes
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLS86H65T77J
NSF ApprovedYes
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923224058
Each Quantity1
Each Length (in.)3.86
Each Width (in.)3.86
Each Height (in.)6.30
Each Weight (lb.)0.33
Each Cube (CuFt.)0.0543
Pack TypeBox
Inner UPC20045923224052
Inner Quantity10
Inner Length (in.)20.08
Inner Width (in.)8.27
Inner Height (in.)6.70
Inner Weight (lb.)5.50
Inner Cube (CuFt.)0.6439
Case UPC10045923224055
Case Quantity20
Case Length (in.)20.86
Case Width (in.)8.86
Case Height (in.)14.17
Case Weight (lb.)11.68
Case Cube (CuFt.)1.5156
×
×

Ballast Compatibility

Name Type View
PL LED 4 Pin - Vertical LED CFL Replacements Pin Based View
×

Precautions

No precautions available at this time.

×
